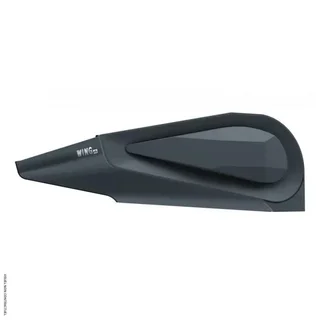

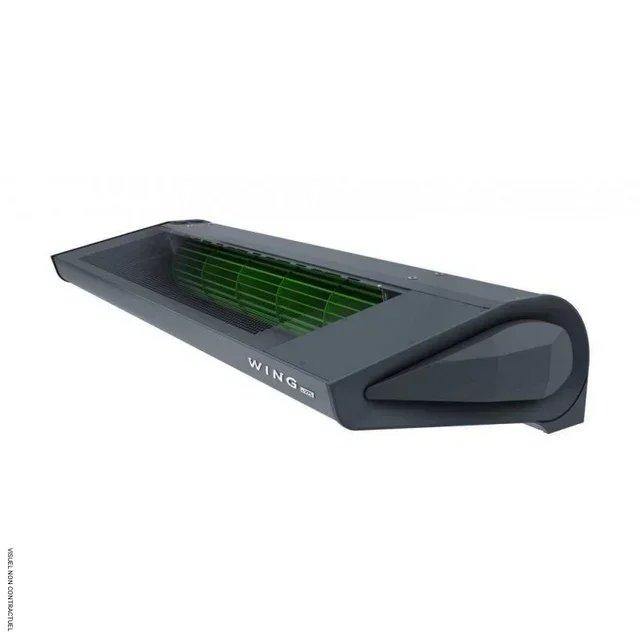

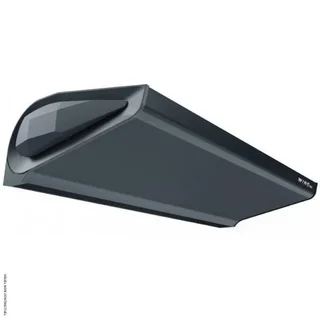

WING W150 EC Hot Air Curtain Anthracite VTS 150cm

Hot water air curtain with EC motor WING W150 Anthracite - VTS

This hot water air curtain combines energy performance and contemporary design. Its construction optimizes airflow to minimize noise nuisance while ensuring effective thermal protection for your openings.

Key features

Quiet and robust design
The unit architecture and airflow management significantly reduce noise emissions. The white lacquered galvanized steel casing combines durability, strength and refined aesthetics.

Energy excellence
The modern EC motor design saves up to 60% electrical energy compared to conventional technologies. The high-power low-temperature heat exchanger ensures optimal asymmetric heat distribution.

Easy maintenance
The large unit opening ensures low pressure drop, simplified cleaning and effective coarse dust filtration. The ABS diamond-tip finishing flange protects the motor laterally.

Mounting options

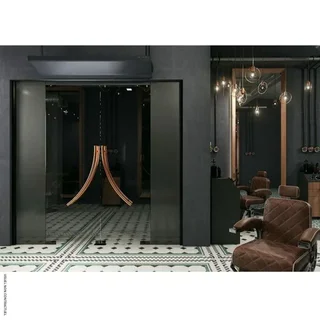

Wall mounting with 4 or 6 screws above the opening (allow clearance for top air intake)

Vertical mounting on the sides of the opening

Standard equipment

Anthracite grey RAL 7016 lacquered galvanized steel bodywork

ABS side finishing covers

AISI 304 stainless steel heating element with thermal protection

Tangential fan on ball bearings AC or EC

IP 20 protection

Available options

Door opening sensor

Wired control

Mounting brackets

Videos

//www.youtube.com/embed/6MSxIBmrP28

//www.youtube.com/embed/uXyPT1tQMko

Technical Sheet - VTS RAAN3715W Air Curtain

Aerodynamic Performance
Flow rate: 3,100 m³/h
Speed: 5 m/s
Max. installation height: 3.7 m
Max. door width: 1 m

Electrical Characteristics
Heating power: 10 to 32 kW
Motor power: 180 W
Motor current: 1.3 A
Power supply: 230 V
Protection rating: IP20

Physical Data
Dimensions (L x W x H): 1,560 x 255 x 465 mm
Weight: 23 kg

Commercial Information
Brand: VTS
Supplier reference: 0309
Model name: RAAN3715W
Product classification: EQUIPMENT

Acoustic Comfort
Sound power: 58 dB(A)
