ATEX Fan 500 mm HCBT/4-500/H EX - 9140 m³/h - S&P

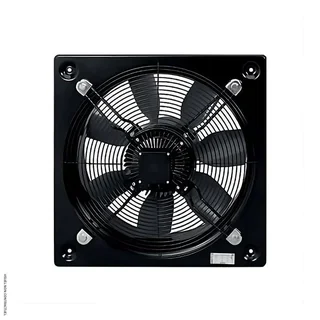

ATEX Wall-Mounted Air Extractor Fan Ø 500 mm HCBT/4-500/H EX - S&P-UNELVENT

Exceptional Ventilation Performance

This ATEX wall-mounted air extractor HCBT/4-500/H EX meets the requirements of ATEX Directive 94/9/EC. It delivers a remarkable airflow rate of 9,140 m³/h, perfectly suited for intensive ventilation of the most demanding industrial environments. With its 809 W power output and robust construction, it guarantees optimal performance while complying with strict ATEX safety standards.

Technology and Reliability

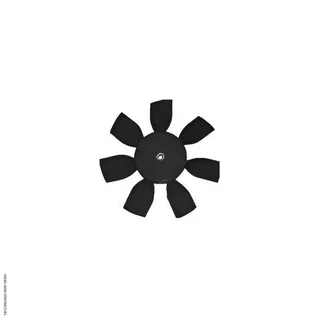

The unit features a dynamically balanced aluminum impeller in accordance with ISO 1940 standard. This design minimizes vibrations and significantly reduces noise pollution. The motor benefits from IP55 protection, and all components are corrosion-resistant. The spark-proof plate and carefully selected materials ensure safe and durable operation, even under severe conditions.

User Comfort

With a contained noise level of 68 dB(A), this fan operates discreetly and preserves the working environment for operators. Its simplified installation and accessible maintenance make it an economical and high-performance solution for professionals looking to invest in reliable long-term equipment.

Technical Specifications

Model: HCBT/4-500/H EX
Model Name: HCBT/4-500/H EX
Reference: 040265
Supplier Reference: 040265

Performance:

Rotation Speed: 1390 rpm

Diameter: 500 mm

Maximum Power: 809 W

Maximum Current: 2.7 A (230V) / 1.6 A (400V)

Maximum Flow Rate: 9,140 m³/h

User Comfort:

Sound Pressure Level: 68 dB(A)

Weight: 16 kg

Product Information:

Brand: S&P France / Unelvent

Origin: Spain

EAN Code: 8413893070449

Classification: EQUIPMENT
