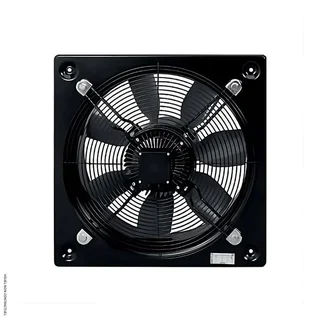

ATEX Wall-Mounted Extractor Ø355mm HCBT/4-355/H EX S&P

Wall-mounted ATEX air extraction fan Ø 355 mm HCBT/4-355/H EX - S&P-UNELVENT

Performance and efficiency

This HCBT/4-355/H EX wall-mounted ATEX extraction fan complies with the requirements of ATEX Directive 94/9/EC. With a diameter of 355 mm and a maximum flow rate of 3,530 m³/h, it ensures optimal ventilation in the most demanding industrial environments.

Reliability and safety

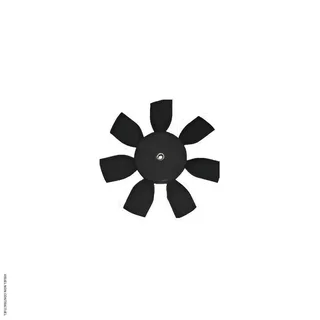

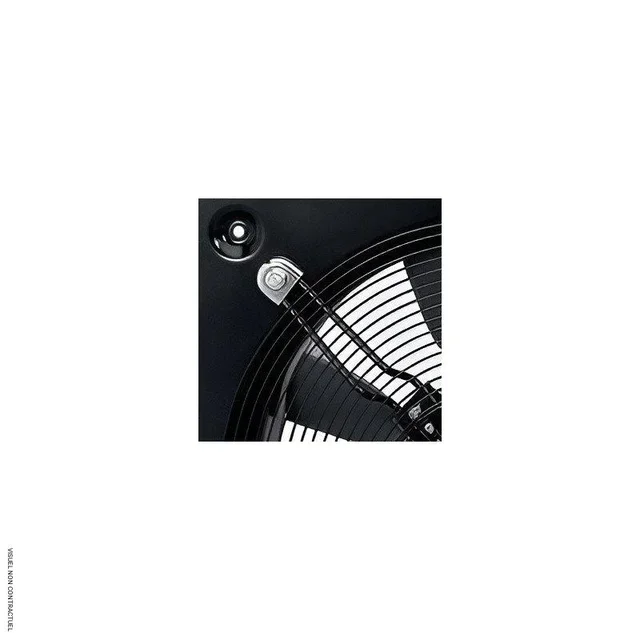

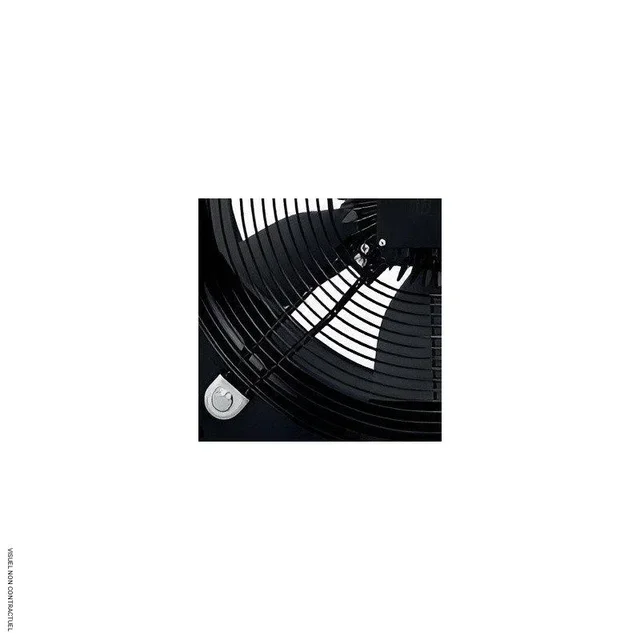

The aluminum impeller is balanced according to ISO 1940 standard, which limits vibrations and reduces the noise level to 59 dB(A). Operation is thus more stable and quieter. The square spark-proof plate benefits from black polyester paint protection. The stainless steel screws ensure increased resistance. This assembly constitutes a reliable and durable solution for areas subject to ATEX regulations.

Power and ease of use

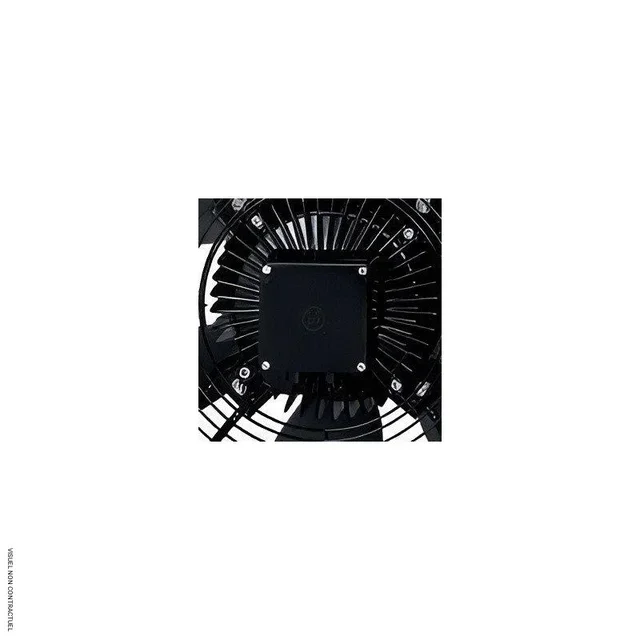

The IP55 motor develops a maximum power of 182 W. This model combines robustness and energy efficiency. Its contained weight of 8 kg facilitates handling, installation, and maintenance. These qualities make it essential equipment for any application where safety and performance are indispensable.

Model: HCBT/4-355/H EX
Reference: 043568
Brand: S&P France / Unelvent
Origin: Spain
EAN Code: 8413893095855

Technical Specifications:

Speed	1380 rpm
Diameter	355 mm
Maximum Power	182 W
Maximum Current	0.8 A (230V) / 0.5 A (400V)
Sound Pressure Level	59 dB(A)
Maximum Flow Rate	3,530 m³/h
Weight	8 Kg

Supplier Reference: 043568
Model Name: HCBT/4-355/H EX
Product Classification: EQUIPMENT
