Heating Cable 18W/m Ø6mm 181m HEATCOM Concrete Screed

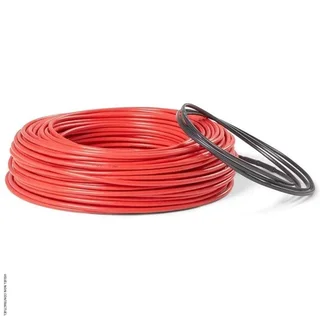

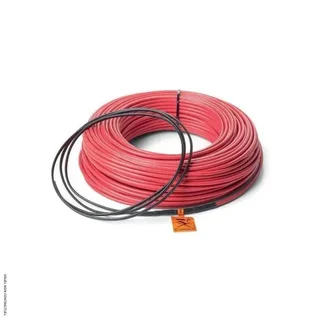

HEATCOM Heating Cable - Ø 6 mm - 18 W/m - Length 181.0 m

This heating cable with a 6 mm diameter is a versatile solution compatible with all types of floor coverings. Its robust and flexible design makes it the ideal equipment for installations requiring a new screed or poured concrete.

Product highlights:

High reliability and resistance to high temperatures

Installation possible on surfaces that are not perfectly flat

Easy fixing to metal reinforcement grids

Optimal integration into concrete for new projects or renovations

Robust outer sheath facilitating embedding

Heat accumulation and distribution:

Once integrated into the screed, this cable ensures efficient floor heating. The thermal accumulation in the slab allows for gradual heat release into the room, guaranteeing a stable and constant ambient temperature.

Power customization:

Heating cables offer great installation flexibility. The spacing between cable lines determines the power delivered per m², allowing the heating to be adapted to the specific needs of each room and its insulation level.

Electrical safety:

This model features a double conductor with earth screen and drain wire for optimal protection.

Specifics of the 6 mm - 18 W/m model

This reference stands out for its versatility and robustness. Designed for embedding in a self-supporting concrete layer or traditional screed, with or without reinforcement grid, it requires a minimum cover thickness of 30 mm.

Recommended applications:

New construction projects

Complete floor renovations

Installations with metal reinforcement

Self-supporting structures

The uniform heat distribution makes it a preferred solution for spaces requiring durable and homogeneous thermal comfort, for both professionals and demanding homeowners.

About the Heatcom brand

Heatcom is a recognized player in the electric heating sector. Specialized in heating cable systems, the company develops solutions for building professionals for underfloor heating and frost protection for roofs and gutters. Heatcom prioritizes quality, performance, and compliance with current standards, with the goal of optimal comfort combined with simple and efficient implementation.

Technical Sheet - Heatcom Heating Cable

Electrical Characteristics

Total power: 3,280 W

Linear power: 18 W/m

Supply voltage: 230 V - 50 Hz

Resistance tolerance: -5% / +10%

Cable Specifications

Drum length: 181.0 m

Diameter: 6 mm

Inner conductor insulated with silicone

Type: 2 conductors + earth shield

Shield: Tinned copper

Outer sheath: PVC

Maximum allowable temperature: 90 °C

Installation

Cold cable: 2.5 m

Minimum construction height: 10 mm

Minimum bending radius: 36 mm

Standards and Certification

Brand: Heatcom

Supplier reference: 51260181

EAN code: 5707359816881

CE approval

Standards: EN60335-2-96 / EN60800

Length tolerance: +/- 2%

Warranty: 25 years

Product Classification: EQUIPMENT
