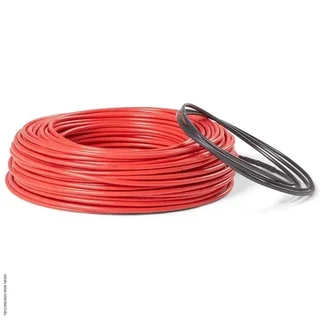

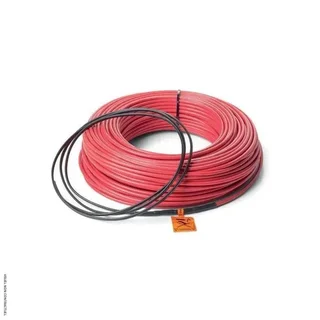

Heating Cable 20W/m Ø6mm 156m HEATCOM Concrete

HEATCOM Heating Cable Ø 6 mm – 156.0 m – 20 W/m

Versatile solution for all floor types

This 6 mm heating cable adapts to all floor coverings and provides a universal solution for your heating projects. Particularly suitable for installations requiring new screed or concrete, its robust yet flexible structure ensures simplified implementation.

Reliability and thermal performance

Renowned for its high reliability and resistance to elevated temperatures, this cable does not require a perfectly flat surface for installation. The range comes in several linear power ratings (10, 14, 18 and 20 W/m), each available in different lengths, to adapt the heat output to the insulation level of each room.

Optimal integration in concrete

Designed to deliver thermal comfort under any type of flooring, this 6 mm cable allows quick fixing on reinforcement grids and ideal incorporation into concrete. It is perfectly suited for both new construction and renovation projects.

Heat accumulation and gradual diffusion

The robust outer sheath facilitates anchoring on metal reinforcements and embedding in concrete. Once integrated, the cable efficiently heats the screed, enabling heat accumulation in the floor mass and its gradual release into the ambient air, ensuring a stable and homogeneous temperature.

Customization of surface power

Heating cables offer great flexibility of use: the power delivered per m² can be adjusted according to the spacing of the cable lines, allowing optimal customization of heat output according to the specific needs of each space.

Enhanced electrical safety

Equipped with a double conductor with earth screen and drain wire, this cable ensures maximum electrical safety. Available in several lengths, it covers a wide range of domestic and professional applications.

Specific features of the 20 W/m model

With its power of 20 W/m, this 6 mm cable represents the optimal solution for embedding in self-supporting concrete layers or screeds, with or without reinforcement grid. Designed for maximum efficiency, it integrates perfectly into minimum thicknesses of 30 mm, ensuring homogeneous and efficient heat distribution.

Its robust construction and high heat output make it particularly suitable for areas with high heating requirements or environments with high thermal insulation. The cable's flexibility allows for precise and easy installation, offering a reliable and durable underfloor heating solution.

Thanks to its optimal embedding capacity, this 20 W/m cable ensures rapid temperature rise and uniform heat distribution, contributing to superior thermal comfort in all types of spaces.

About the Heatcom brand

Heatcom is a recognized supplier in the field of electric heating solutions. Specialized in heating cable systems, the company offers products adapted to the needs of construction professionals, particularly for underfloor heating installations and anti-freeze devices for roofs and gutters. Heatcom distinguishes itself through the quality of its equipment, guaranteeing performance, durability and compliance with current standards. Its solutions are designed to provide optimal comfort and simple, efficient installation.

Technical Specifications

Dimensions & Power
Drum length: 156.0 m
Power: 3,110 W
Output power: 20 W/m
Voltage: 230 V - 50 Hz

Cable Specifications
Cable diameter: 6 mm
Inner conductor with silicone insulation
Cable type: 2 conductors + earth screen
Tinned copper screen
Outer sheath in PVC
Cold cable: 2.5 m

Thermal Performance
Maximum allowable temperature: 90 °C
Minimum construction height: 30 mm
Minimum bending radius: 36 mm

Standards & Warranty
Warranty: 25 years
Approval: CE
Standards: EN60335-2-96, EN60800
Resistance tolerance: -5% / +10%
Length tolerance: ± 2%

Product Identification
Brand: Heatcom
Supplier reference: 51270156
EAN code: 5707359816959
Product classification: EQUIPMENT
