IDE 100 D Oil-Fired Hot Air Cannon 100 kW TROTEC

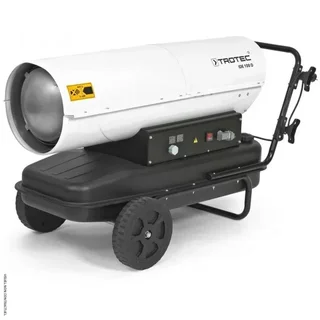

Trotec IDE 100 D Direct Fired Oil Heater

This oil-fired space heater delivers a thermal output of 100 kW, perfectly suited for heating construction sites, warehouses, agricultural buildings, or protecting materials from frost. Its 100% energy efficiency ensures optimal heat transfer with zero loss.

The burner operates on either oil or diesel, ensuring stable fuel supply thanks to a premium Danfoss® injection pump. The stainless steel combustion chamber ensures even and efficient heat distribution. Safety is guaranteed by electronic flame monitoring and built-in overheating protection.

Ease of use and maintenance

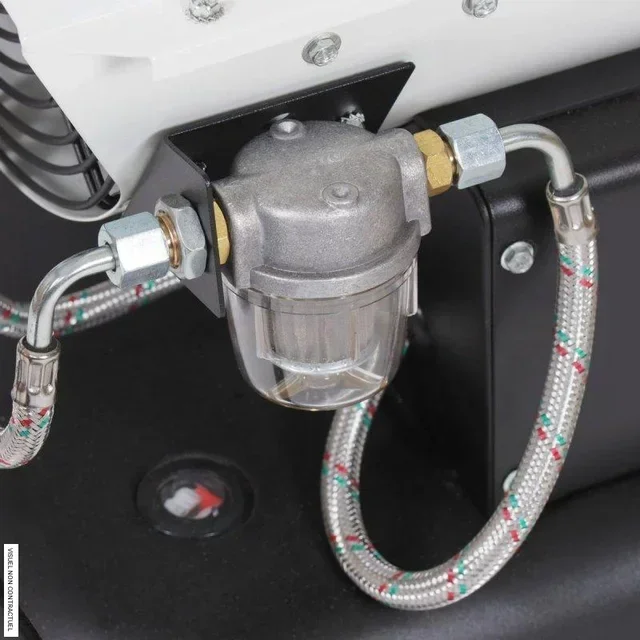

Maintenance is simplified by an externally accessible fuel filter. Fuel level can be checked instantly via the integrated tank gauge.

Temperature control is managed by a digital thermostat displaying both setpoint and actual values simultaneously. For remote management, an external thermostat can be connected up to 25 meters away.

Mobility and robustness for outdoor use

Designed for intensive outdoor use, this unit features a wheeled chassis for easy movement. Its reinforced housing with double coating withstands harsh weather conditions.

The integrated tank provides full daily autonomy. For extended use, connection to an external tank is possible via an optional extension kit.

Direct heat for ventilated spaces

The IDE range heaters are designed for open or well-ventilated spaces such as construction sites and agricultural operations. The absence of an exhaust duct allows for complete heat recovery.

Hot air is propelled by a fan that simultaneously supplies oxygen for combustion. Fuel is atomized, ignited, and burned in a dedicated chamber, with hot gases then mixed with ambient air for rapid distribution.

These heaters discharge combustion gases directly into the environment. Adequate ventilation is essential to prevent any accumulation. Use in enclosed spaces frequented by people or animals is not recommended.

Combustion also releases significant moisture, ruling out any construction drying applications.

Practical advantages:

Economical solution for standard oil heating

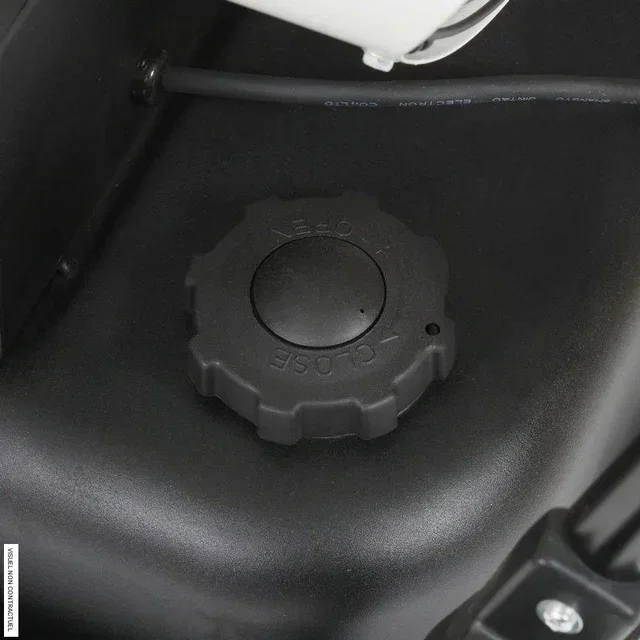

Integrated tank with level indicator

Electronic flame monitoring

Overheating protection

Stainless steel combustion chamber

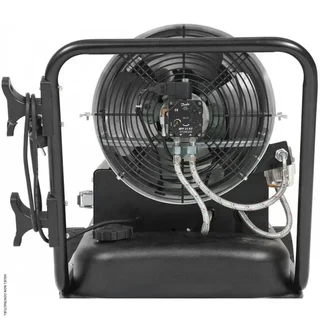

Danfoss® injection pump

Standard fuel filter

Integrated thermostat with dual display

Connection for external thermostat

Chassis with cable support for easy movement

About the Trotec brand

Trotec specializes in the manufacture and distribution of air treatment and precision measurement equipment. Recognized for its innovation and "Made in Germany" quality, the brand offers a complete range including dehumidifiers, humidifiers, and environmental measuring devices, meeting the needs of both professionals and individuals. Trotec's commitment focuses on sustainability, energy efficiency, and performance to improve air quality and comfort in all types of spaces.

Technical specifications of the Trotec IDE 100 D fuel hot air generator

Brand	Trotec
Model	IDE 100 D
Supplier reference	1430000090
EAN code	4052138015926

Thermal performance

Heat output	100 kW
kcal equivalent	85,984 kcal
Maximum air flow	1,300 m³/h
Flow type	Axial
Maximum temperature	350 °C
Heating type	Direct

Compatible fuels

Heating oil EL	Standard
Diesel	Standard
Kerosene	Standard
Fuel pump	Danfoss
Maximum consumption	9.5 l/h
Tank capacity	69 litres

Electrical supply

Voltage / Frequency	220-240 V, 50 Hz
Current consumption	2.7 A
Power consumption	0.43 kW
Contact plug	CEE 7/7
Cable length	1.15 metre

Safety and regulation

Internal thermostat	Standard
External thermostat pre-equipment	Standard
Overheat protection	Standard

Dimensions and weight

Length	1,210 mm
Width	582 mm
Height	718 mm
Weight	41 kg

Standard equipment

Construction	Steel
Transport handles	Standard
Support bar	Standard

Noise level

Distance 1 m

80 dB(A)

Classification : EQUIPMENT
