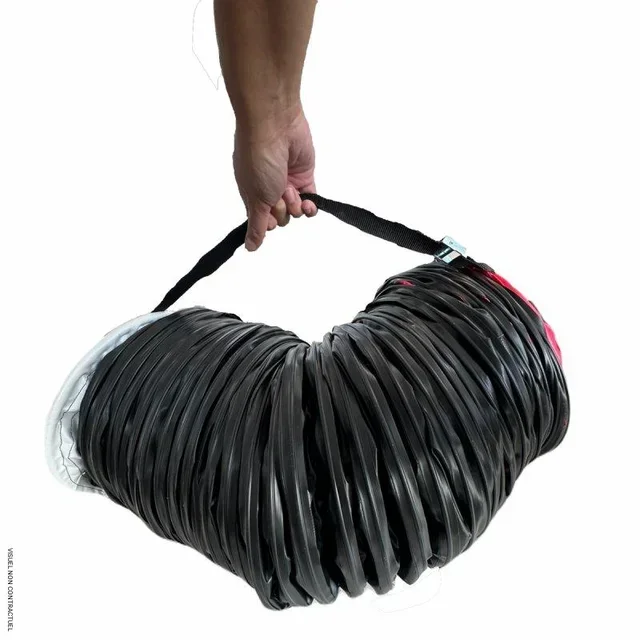

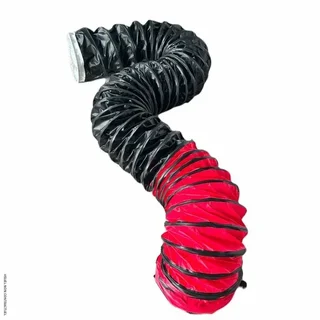

Flexible hot air duct M1 VTR HT - Diam 410 mm - 6 m

NF Reinforced Flexible Hot Air Duct - M1 VTR High Temperature - For Public Buildings - Diam 410 mm - Length 6 m - SEMA

M1 VTR HT HOT AIR DUCT: a technical solution designed for demanding industrial applications in thermal management and chemical resistance.

Key features:

Inner diameter available from 310 mm to 510 mm

Standard lengths: 6 m or 10 m

Operating pressure up to 97,500 Pa

Operating vacuum up to 4,900 Pa

Composition and materials:

This duct is made of polyester fabric coated with PU with a weight of 350 g/m². It features a helical steel wire reinforcement and a black PVC wear-resistant profile for optimal durability. The operating temperature range extends from -40°C to +180°C.

Application areas:

Industrial ventilation

Heating

Evacuation of aggressive chemical vapors (acids, bases, alcohols, solvents)

Blowing for hot air generator

Connection system and handling:

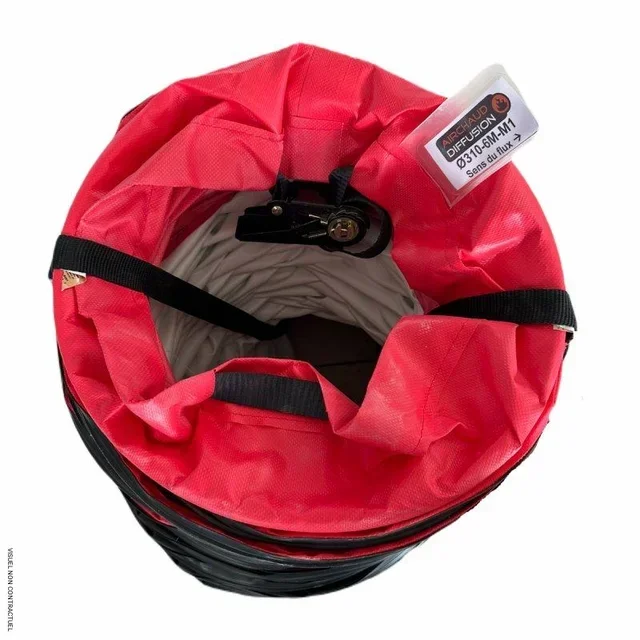

The ends are equipped with two semi-rigid rings with flaps fitted with a quick-tightening strap, ensuring a watertight and stable connection between two duct sections. Two ratchet straps facilitate transport and storage.

Compliance:
Certified NF - M1, this duct meets regulatory requirements for Public Establishments.

VTR HT Duct - SEMA GN6-410

Technical specifications:

Dimensions
Length: 6 meters
Diameter: 410 mm
Coil section: 2.5 mm

Performance
Operating pressure: 47,250 Pa
Operating vacuum: 3,400 Pa
Class: M1

Product information
Brand: SEMA
Supplier reference: GN6-410
Model name: VTR HT Duct
Origin: France
Category: ACCESSORIES
