Trotec TD 200 Laser Distance Meter - 200m IP65 3x Camera

Laser Distance Meter TD 200 - TROTEC

The TD200 is a distance meter designed to meet the demands of professional on-site measurements.

IP65 Certified Robustness
Completely dustproof and resistant to water jets, this device withstands drops from up to 1 meter in height. Its design allows for cleaning under running water, ensuring optimal use even in extreme conditions of dust, rain, or mud.

Measurement Performance
This distance meter offers a maximum range of 200 meters with remarkable precision. It integrates 15 distinct measurement modes to cover all professional needs:

Indirect measurements via Pythagorean functions (2 or 3 points)

Automatic area calculations: rectangular, circular, triangular, and trapezoidal

Volume determination, including cylindrical forms

P2P function to measure distance between two precise points

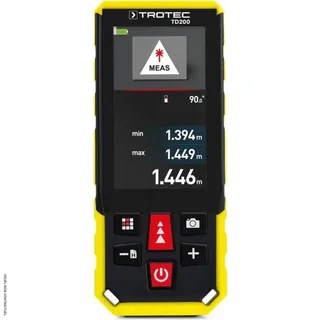

Simple or continuous measurements with recording of minimum and maximum values

Stake-out function for positioning regular reference points

Cutting-Edge Technology
The equipment combines a digital camera with 3x zoom and a 360° tilt sensor, enabling applications impossible with a standard distance meter:

Measurements beyond obstacles thanks to the Auto Level function

Automatic height calculations

Determination of inclined lengths via trapezoidal functions

Triangular calculations for complex spaces

Ergonomics and Storage

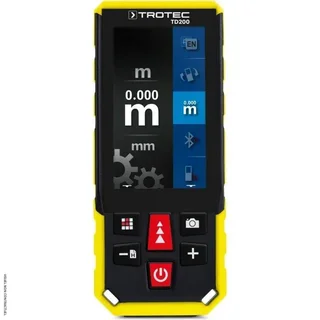

The 4-line display automatically adapts to the device orientation and offers a light/dark mode for optimal visibility regardless of lighting conditions. Internal memory stores 1,000 measurement values and 100 screenshots. Three reference points are available: front edge, rear edge, or tripod position.

Modern Equipment

Bluetooth connectivity for future applications

Induction or USB charging for rechargeable batteries

Digital bubble level for measurement stabilization

5-second timer to prevent shaking

Mute function to disable audio signals

TD200 Key Features

200 m range with high precision

15 measurement modes (Pythagorean, trapezoid, cylinders, triangles)

IP65 certification for construction site resistance

3x zoom camera with automatic viewfinder

Integrated 360° tilt sensor

Memory for 1,000 values + 100 screenshots

Bluetooth and induction charging

Rotating display with light/dark mode

Stake-out function and continuous mode

About the Trotec Brand

Trotec specializes in the manufacturing and distribution of air treatment equipment and precision measuring instruments. Recognized for its innovation and German quality, the brand offers a comprehensive range including dehumidifiers, humidifiers, and environmental measurement instruments. Trotec is committed to providing sustainable, energy-efficient, and high-performance solutions to improve air quality and comfort in professional and domestic spaces.

Trotec TD 200 Laser Distance Meter

Product Overview

The Trotec TD 200 laser distance meter is a compact and high-performance measuring instrument, designed to deliver optimal precision for your everyday measuring tasks. Equipped with a 3-inch HD color screen, this device ensures clear and comfortable data reading, even in challenging conditions.

Technical Specifications

Weight (batteries included)	190 g
Dimensions (L x W x H)	130 x 54 x 28 mm
Laser measuring range	0.05 to 200 m / 2 in to 656 ft
Display	3-inch HD color screen
Units of measurement	m/mm/ft/in/ft+in
Accuracy	±2.0 mm + 5 x 10-5 D
Resolution within measuring range	1 mm
Reference point	front/rear of device / tripod
Number of records in history	1,000 max
Number of saved photos	100 max
Operating temperature	0 °C to 40 °C / 32 °F to 104 °F
Storage temperature	-10 °C to 60 °C
Relative humidity	max. 90 %
Laser power	< 1 mW (630–670 nm)
Laser class	II
Auto power-off	after approximately 3 minutes of non-use
Laser shut-off	after approximately 30 seconds of non-use
Protection rating	IP 65

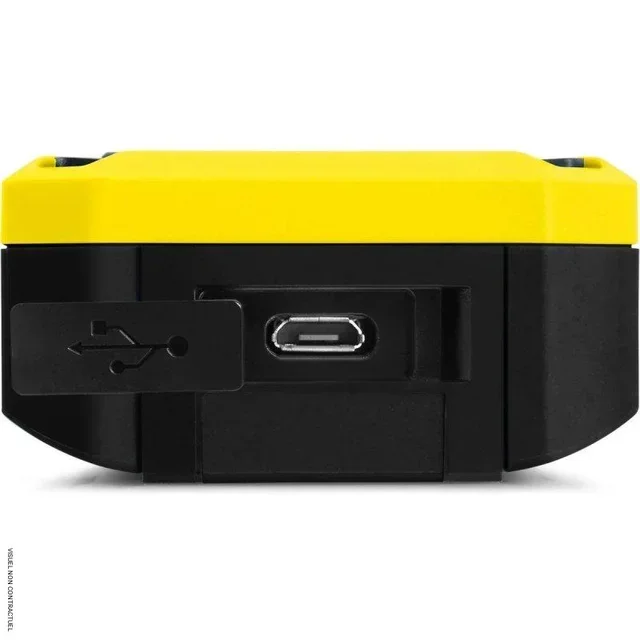

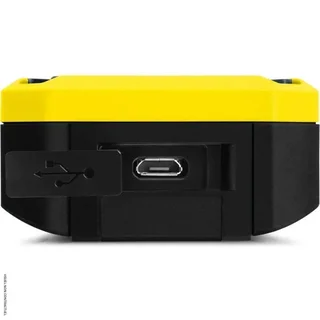

USB port	micro-USB

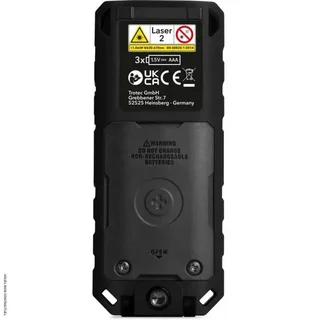

Power supply	3 rechargeable 1.2 V AAA batteries
Inductive charging	5 V, 1 A/5 A
Brand	Trotec
Supplier reference	3510001145
Model name	TD 200
EAN code	4052138116883
