FRICO FRICOKIT 1320W Complete Radiant Ceiling Plaster Kit

Complete radiant plaster ceiling kit ready to install FRICOKIT 1320W - FRICO

Heating panels for radiant plaster ceiling
This ready-to-use kit includes regulation and thermostat for simplified installation. The FRICOKIT range from FRICO brand offers electric ceiling heating solutions, ideal for surfaces up to 18 m² with a power of 1320 W.

Radiant plaster ceiling: high-performance heating

Contrary to popular belief, ceiling radiant heating is no less efficient than underfloor heating. Radiant heat does not depend on air convection: it directly heats surfaces, objects, and occupants. With only 13 mm of plaster between the source and the room, efficiency reaches 80%. Response time is fast thanks to negligible inertia, without the mass of a floating screed. Surface temperature does not exceed 32°C at nominal operation.

Fricokit kit contents

Each pack contains all necessary elements:

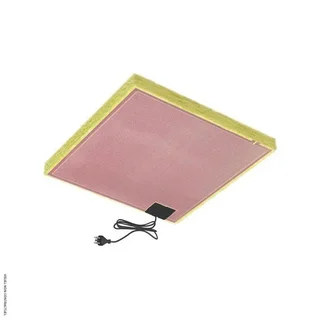

Radiant heating panels (44 W and 88 W)

Neutral panels for thermal continuity

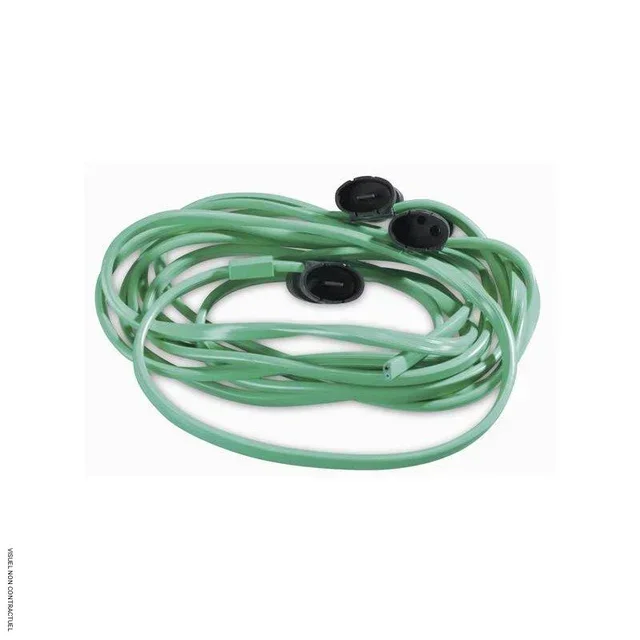

Electrical connection garland

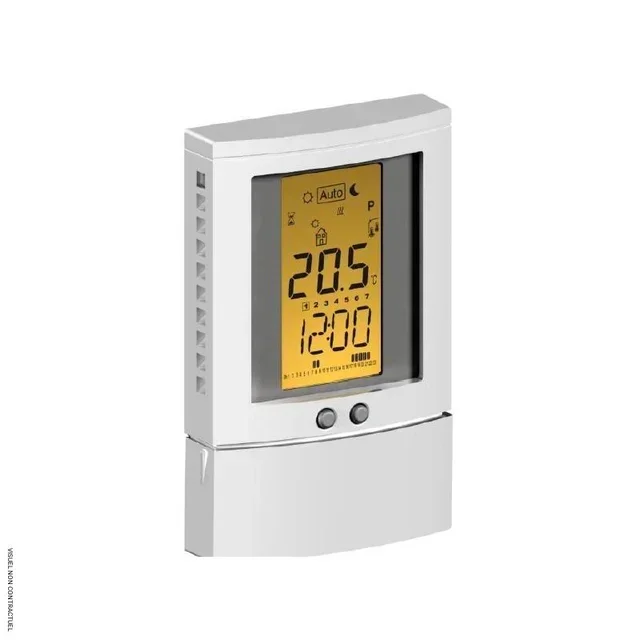

Specific TEVMIN11 electronic thermostat

Installation and implementation

Installation requires plasterboards specially adapted to the PRP technique. Panels connect via the garland to a junction box, then to the thermostat powered by 230V single-phase. A thermal study and layout plan are mandatory. Implementation must comply with NF C15100, CPT-PRP, and current technical approval. It is reserved for QUALIBAT 7151, 7152, or 7153 qualified companies, or carried out in coordination between heating electrician and certified ceiling installer.

Recommended sizing

Very good insulation: 75 W/m² for supplementary heating, 85 W/m² for main heating

Average insulation: up to 100 W/m² maximum

Poor insulation: system not recommended, prefer another solution

A standard box develops 73.3 W/m². Kits cover from 1.80 m² to 30.60 m² depending on models (132 W to 2244 W).

Advantages of the Fricokit system

Optimal comfort: Gentle and stable heat without air movement, eliminating dust, dust mites, and odors.

Layout freedom: Walls remain clear, habitable surface is fully exploitable.

Discreet aesthetics: Identical appearance to classic plaster ceiling, completely invisible.

Silence and acoustics: Perfectly silent operation with acoustic correction between levels.

Maximum safety: Low surface temperature eliminating burn risks, protected position against vandalism.

Ease of use: Facilitated installation and regulation, no maintenance required.

Energy performance: Compliant with thermal regulations, optimal consumption control without air stratification.

Technical specifications

Panel SKP36N: 0 W - 1200x600x40 mm (neutral)

Panel SKP3606: 44 W - 600x600x40 mm

Panel SKP3612: 88 W - 1200x600x40 mm

Garlands available from 6 to 30 panels depending on configurations.

Warranty and compliance

Products comply with current standards with NF Electricity marked heating element. 10-year warranty ceiling included according to special conditions. 30 mA differential protection required per 7.5 kW maximum under 230V.

About the Frico brand

Frico develops innovative and economical heating solutions for many years. Specialized in reducing energy losses and optimizing thermal comfort, the brand offers a complete range including air curtains, radiant cassettes, fan heaters, destratifiers, and regulation systems. Frico convectors ensure homogeneous heat distribution while effectively fighting cold air currents.

Complete FRICOKIT 1320W Infrared Heating Kit

The FKIT1320 kit from FRICO offers a high-performance and modular heating solution for areas up to 18 m². This French infrared system combines energy efficiency and simplified installation.

Kit highlights:

Total power of 1320W distributed across 27 panels

Precise temperature management via the TEVMIN11 thermostat

Wiring provided for 18 panels with GPRP18 garland of 15m

1 free slot remaining for future expansion

Kit composition:

Neutral panels SKP36N (0W - 1200x600x40mm)	10 units
Plaster panels SKP3606 (44W - 600x600x40mm)	4 units
Plaster panels SKP3612 (88W - 1200x600x40mm)	13 units

Technical specifications:

Power supply: 230V Single-phase

Packaging: 1 carton A + 3 cartons C

Total weight: 54 kg

Supplier reference: FKIT1320

Origin: France
